Building Data Lake on AWS with S3, Glue and Athena
Author: Rudi Suryadi

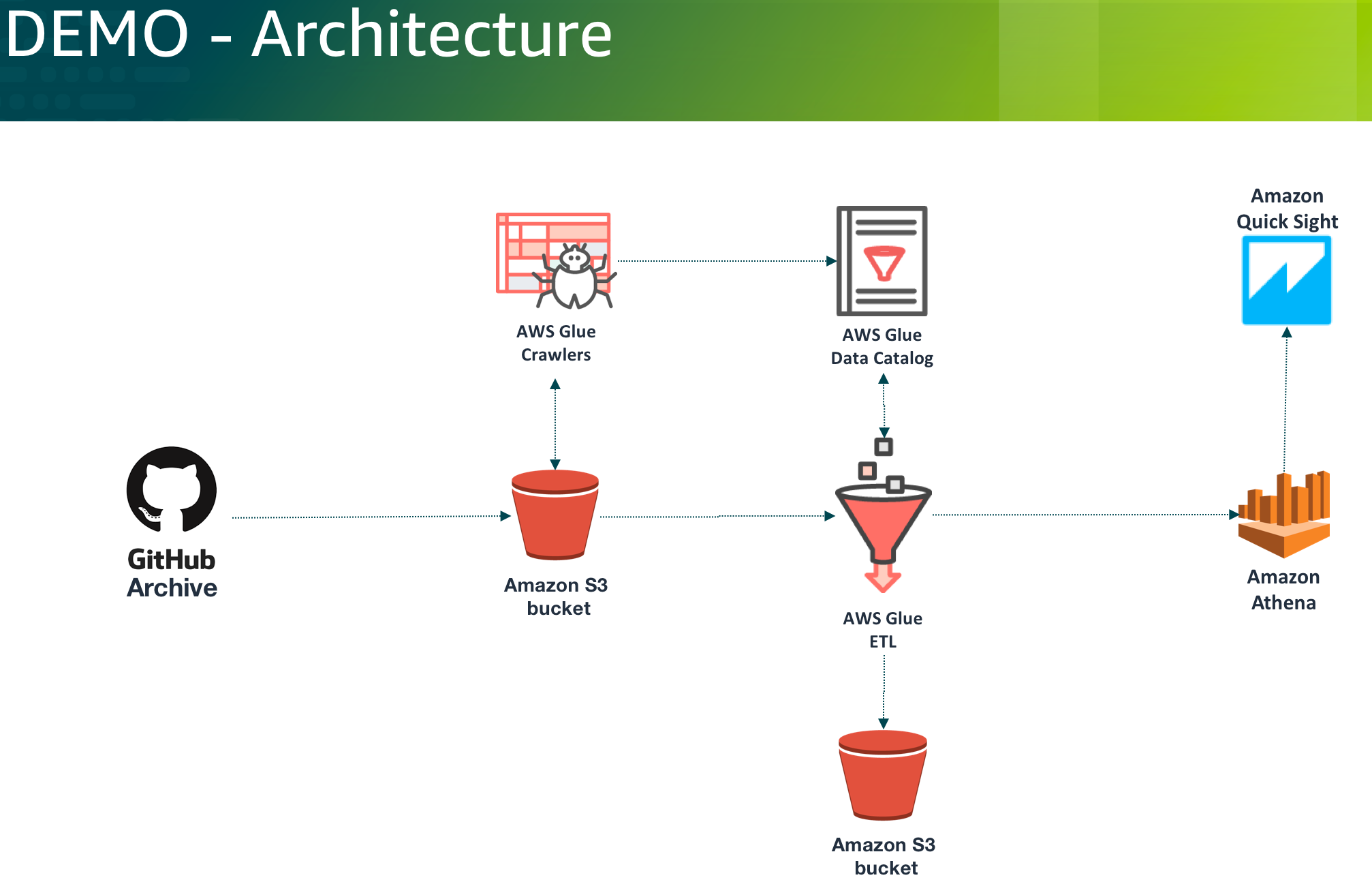

Architecture - Diagram
Prerequisites:
- Have access to an AWS account in which your user has AdminstratorAccess
- This lab should be executed in ap-southeast-1 region. Best is to follow links from this guide
- Access to a modern browser 😜
Part 1 : Ingest and Storage
Download Sample Data from GitHubArchive
- Download this file : http://data.gharchive.org/2018-03-01-15.json.gz
Create S3 Bucket
In this step we will navigate to S3 Console and create the S3 bucket used throughout this demo.
Login to AWS Console : https://console.aws.amazon.com/console/home?region=ap-southeast-1
Navigate to S3 Console & Create a new bucket in ap-southeast-1 region :
- Goto : https://console.aws.amazon.com/s3/home?region=ap-southeast-1
- Click - Create Bucket
- Bucket Name : yourname-etl-demo-bucket
- Region : Asia Pacific (Singapore)
- Click Create (bottom left)
Upload Sample Data to S3 Bucket
In this step we will navigate to S3 Console and upload the sample data used in this lab.
- GoTo : https://console.aws.amazon.com/s3/home?region=ap-southeast-1
- Open Bucket : yourname-etl-demo-bucket
- Click : Create folder
- Folder Name : data
- Click : Save
- Open Folder : data
- Click : Create folder
- Folder Name : raw
- Click : Save
You should have a folder structure similar to this
- Click : Upload
- Click : Add Files > Navigate & upload the downloaded 2018-03-01-15.json.gz file
- Click : Upload

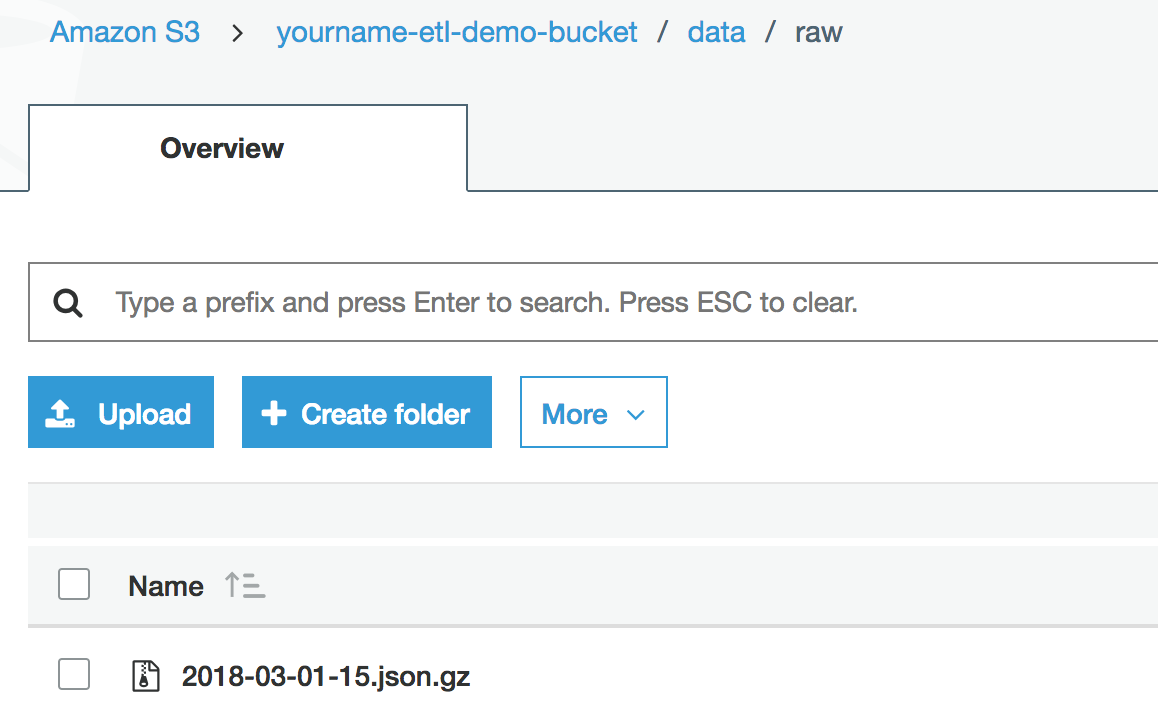

By now your S3 bucket should look like this
Part 2 : Catalog and Transform
Create IAM Role
In this step we will navigate to IAM Console & create a new Glue service role, this allows AWS Glue to access data sitting in S3 and create necessary entities in Glue catalog.
- Goto: https://console.aws.amazon.com/iam/home?region=ap-southeast-1#/roles
- Click - Create role
- Choose the service that will use this role: Glue
- Click - Next: Permissions
- Search for - AmazonS3FullAccess
- Select Checkbox
- Search for - AWSGlueServiceRole
- Select Checkbox
- Click - Next: Review
- Role name: AWSGlueServiceRoleDefault
- make sure that are two policies attached to this role (AmazonS3FullAccess, AWSGlueServiceRole)
- Click - Create role
Create AWS Glue Crawlers
In this step, we will navigate to AWS Glue Console & create glue crawlers to discovery the newly ingested data in S3.
- Goto: https://ap-southeast-1.console.aws.amazon.com/glue/home?region=ap-southeast-1
- On the left panel, click on Crawlers > Click on Add Crawler
- Crawler info
- Crawler name: innovate-crawler
- Click - Next
- Data store
- Data store: S3
- Crawl data in: Specified path in my account
- Include path: s3://yourname-etl-demo-bucket/data/
- Click - Next
- Add another data store : No
- Click - Next
- IAM Role
- Choose: Choose an existing IAM role
- Role Name: AWSGlueServiceRoleDefault
- Click - Next
- Schedule
- Frequency: Run on demand
- Click - Next
- Output
- Click - Add database
- Database name: innovate-db
- Click - Create
- Click - Next
- Review all steps
- Review the configuration & make sure its as mentioned above
- Click - Finish
You should see a message : Crawler innovate-crawler was created to run on demand.
- Click - Run it Now? this will run the crawler
Wait for few minutes
Verify newly created tables in catalog
Navigate to Glue Catalog & explore the crawled data:
- Goto : https://ap-southeast-1.console.aws.amazon.com/glue/home?region=ap-southeast-1#catalog:tab=databases
- Click - innovate-db
- Click - Tables in innovate-db
- Click - data
- Look around and explore the schema for your dataset
- Look for the average recordSize, recordCount, compressionType
Query newly ingested data using Amazon Athena
- Goto : https://ap-southeast-1.console.aws.amazon.com/athena/home?region=ap-southeast-1#query
- On the left panel (Database) drop down , select innovate-db > select table data
- Cick on 3 dots (3 vertical dots) > Select Preview Table
- In query editor, paste the following query > Click on Run Query
SELECT id, created_at FROM "innovate-db"."data" where type = 'PullRequestEvent'
- One the query execution finishes, note down the Run time & Data scanned** statistics
Transform data - write your ETL job
In this step you will convert the JSON files to parquet
Navigate to Glue Console and Transform your data:
- Goto : https://ap-southeast-1.console.aws.amazon.com/glue/home?region=ap-southeast-1#etl:tab=jobs
- Click - Add job
- Job properties:
- Name: innovate-etl-job
- IAM Role: AWSGlueServiceRoleDefault
- This job runs: A proposed script generated by AWS Glue
- ETL language: Python
- Leave everything else to default
- Expand Security configuration, script libraries, and job parameters (optional)
- Concurrent DPUs per job run : 2 (this is the capacity of underlying spark cluster that Glue uses)
- Click - Next
- Choose your data sources:
- Select : [Name] = data | [Database] = innovate-db
- Click : Next
- Choose your data targets:
- Select: Create tables in your data target
- Data store : Amazon S3
- Format : Parquet
- Target Path : s3://yourname-etl-demo-bucket/data/parquet/
- Click : Next
- Map the source columns to target columns:
- Leave default options
- Click : Next
- Review:
- Review the job configuration and properties & ensure its same as mentioned above
- Click : Save job and edit script
- Review the code in the editor & explore the UI (do not make any changes to the code at this stage)
- Click - Save
- Click - Generate Diagram
- Click - Run > Run Job
- Goto : S3 console : https://s3.console.aws.amazon.com/s3/home?region=ap-southeast-1#
- Navigate :
- Click - yourname-etl-demo-bucket > data
- Goto : https://ap-southeast-1.console.aws.amazon.com/glue/home?region=ap-southeast-1#catalog:tab=crawlers
- Click : innovate-crawler > Run Crawler
- Goto : https://ap-southeast-1.console.aws.amazon.com/athena/home?region=ap-southeast-1#query
- On the left panel (Database) drop down , select innovate-db > select table parquet
- Cick on 3 dots (3 vertical dots) > Select Preview Table
- In query editor, paste the following query > Click on Run Query

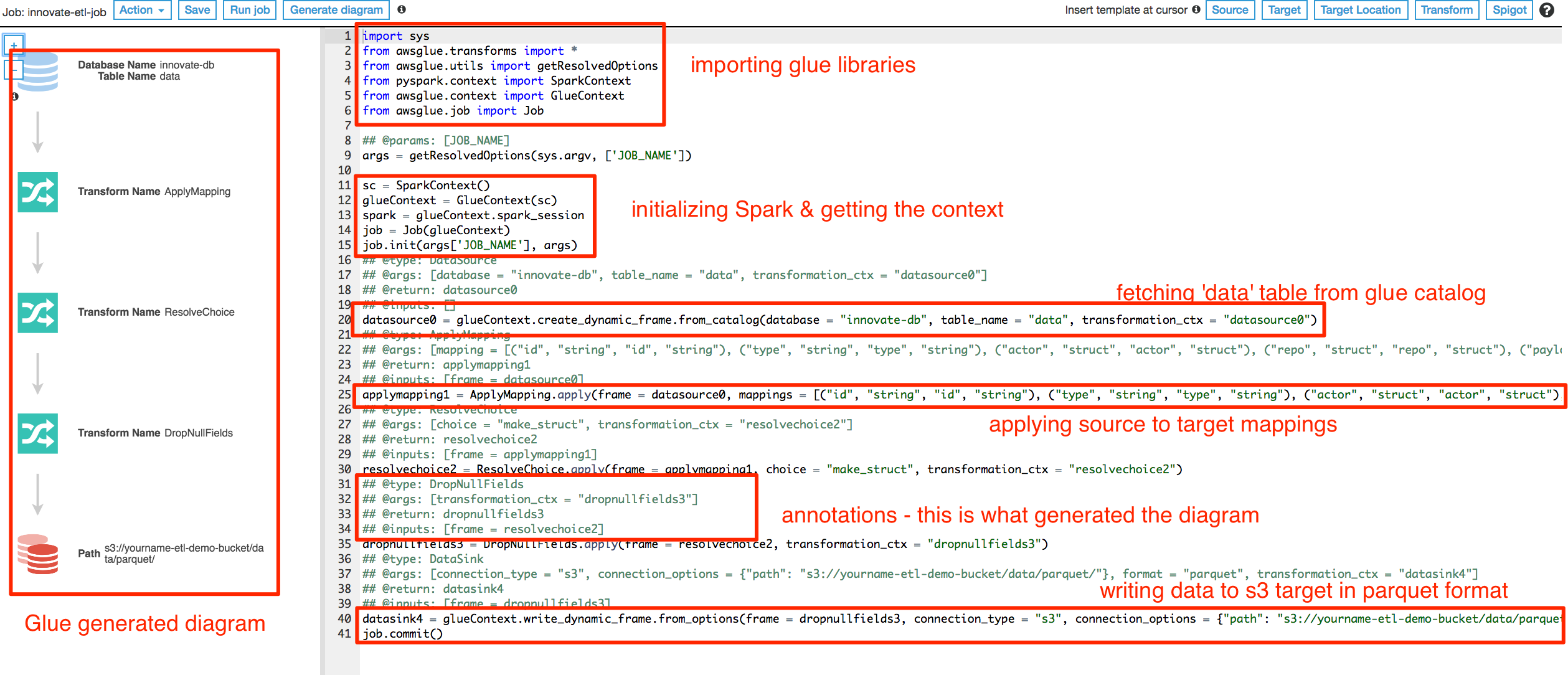

This is the AWS Glue Script Editor. Here is where you will author your ETL logic.
First time execution of the Job takes up to 10-20 minutes.
Validate that processed data has arrived in S3
Once the ETL script has ran successfully.
There should be a folder called parquet created here
Catalog transformed data
Now that we have transformed the raw data and put it in parquet folder in our S3 bucket, we should re-run the crawler to update the catalog information.
Wait for few minutes
Once the crawler has stopped make, 2 new table has been added to the catalog. (Table 1 - raw , Table 2 - parquet -> as the crawler is crawling the parent data directory)
Part 3 : Analyze
Explore our data set using Athena
In this step we will analyze the transformed data using Athena
SELECT id, created_at FROM "innovate-db"."parquet" where type = 'PullRequestEvent'
- One the query execution finishes, note down the Run time & Data scanned** statistics
Homework : Find out why this happened ?
How can you further optimize how Athena reads from S3.
- Explore the Athena UI and try running some queries
Part 4: Visualize
Setting up data access
Login to Amazon Quick Sight Console & complete the registration & sign-up https://ap-southeast-1.quicksight.aws.amazon.com/sn/start
- Goto : https://us-east-1.quicksight.aws.amazon.com/sn/console/resources
- Select All options
- Click : S3 Bucket > select yourname-etl-demo-bucket . Click Select Bucket
- Click : Apply
Using Amazon Quick Sight to visualize our processed data
In this step we will visualize it using QuickSight
- Change region : Singapore
- Goto: https://ap-southeast-1.quicksight.aws.amazon.com/sn/start
- Adding a new dataset:
- On top right, Click - Manage Data
- Click - New Data Set
- Click - Athena
- New Athena data source
- Data source name: innovate-db
- Click - Create data source
- Choose your table:
- Database: contain sets of tables: select - innovate-db
- Tables: contain the data you can visualize : select - parquet
- Click - Select
- Finish data set creation:
- Select - Directly query your data
- Click Visualize

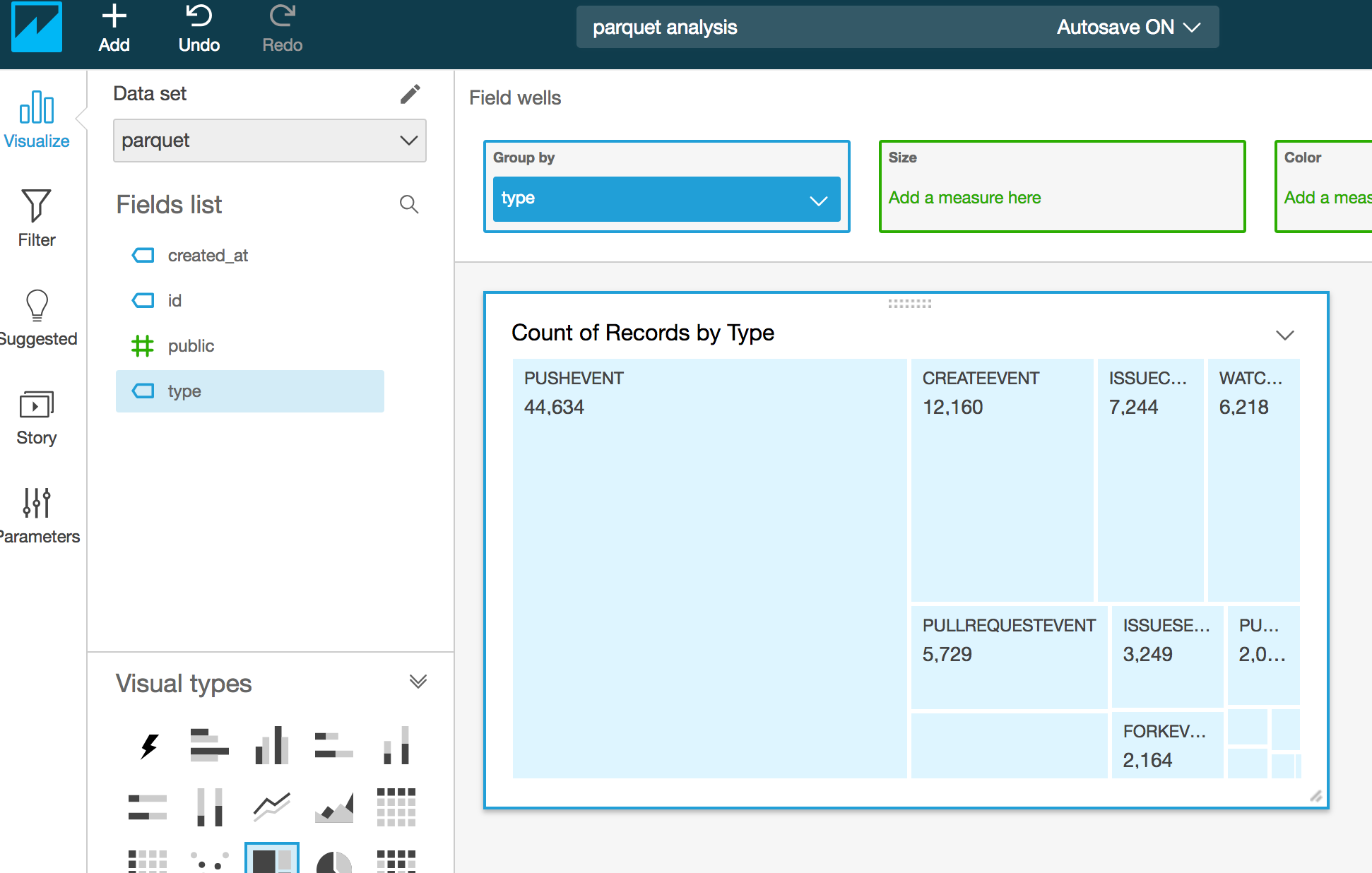

Visualization : Tree map of most played Artist Names
In this step we will create a visualization that shows who are the host played artists
- On the bottom-left panel - Visual types
- Hover on icon there to see names of the visualizations
- Click on - Tree Map
- On top-left panel - Fields list
- Click - type
Play around and explore Amazon QuickSight Console. Try out filters, other visualization types, etc.
Clean Up
- Delete Glue Database - innovate-db
- Delete Glue Job - innovate-etl-job
- Delete S3 bucket - yourname-etl-demo-bucket
- Delete QuickSight account https://docs.aws.amazon.com/quicksight/latest/user/closing-account.html
